Versions of the Fluid Space Drive (abbreviated).

Main page



(This page is a work in progress)





Version 0: Propeller in a box, motor/propeller attached directly to the box, not very efficient but adequate for satellite positioning and useful for easily demonstrating the principle involved.

Version 1: The original idea, propeller/motor bump into the forward hull, returns to start position by reversing propeller.

Version 1.2: Propeller/motor pulled/pushed/jerked to original position by sudden pull (no reversing of propellers necessary)

Version 2: Some experimentation showed the addition of an air brake (Fig 5) improves the propulsion

Version 3: Further experimentation demonstrates propulsion can be obtained without a propeller

Version 3.a: Improvements

Version 4: Air brake without additional mass.

Versions 0 to 4 make use of how a gas behaves in a Turbulent Flow environment, but it is possible devise method of propulsion using Laminar Flow as described in version 5.

Version 5: Laminar Flow Fluid Space Drive (not tested)





All versions (0 to 5) as described in this page are mechanisms inside a pressurized inflated container made of Kevlar (Fig 1) or other suitable material with a power source attached or with power being provided by the spacecraft that is being propelled.



Fig 1





Version 0: Propeller in a box.

Motor/propeller attached directly to the box (Fig 2), not very efficient but adequate for satellite positioning and useful for easily demonstrating the principle involved (See DIY test)



Fig 2





Version 1: The original idea

Free floating propeller/motor (fig 3) bump into the forward hull, returns to start position by reversing propeller (see test)



Fig 3





Version 1.2

Propeller/motor (fig 4) pulled/pushed/jerked to original position by sudden pull (no reversing of propellers necessary)

Description: Description: Description: Description: Description: G:\0 0 carpetas invento\0 0 Invento 2010 FINAL\web\ver_files\image003.jpg

Fig 4



Version 2

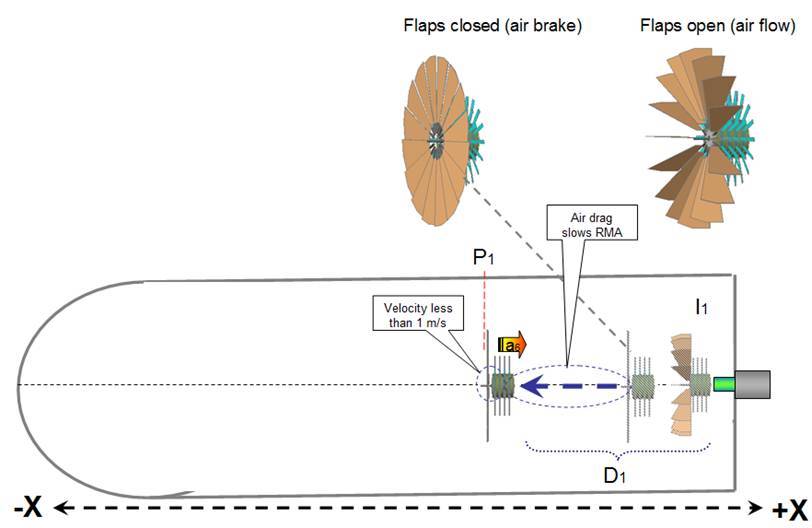

Some experimentation showed the addition of an air brake (Fig 5) improves the propulsion effect (see)



Fig 5







Version 3

Further experimentation demonstrates propulsion can be obtained without a propeller (simple explanation using a spaceship, astronauts and Batman, serious explanation (see)



Description: Description: Description: Description: Description: G:\0 0 carpetas invento\0 0 Invento 2010 FINAL\web\ver_files\image005.jpg





Version 3.a

Improvements



Version 4

Air brake without additional mass. (Not ready)







Version 5

Laminar Flow Fluid Space Drive (not tested see)



Description: Description: Description: Description: Description: G:\0 0 carpetas invento\0 0 Invento 2010 FINAL\web\ver_files\image007.jpg





Versions 0 to 4 make use of how a gas behaves in a Turbulent Flow environment, but it is possible devise method of propulsion using Laminar Flow (Version 5)
